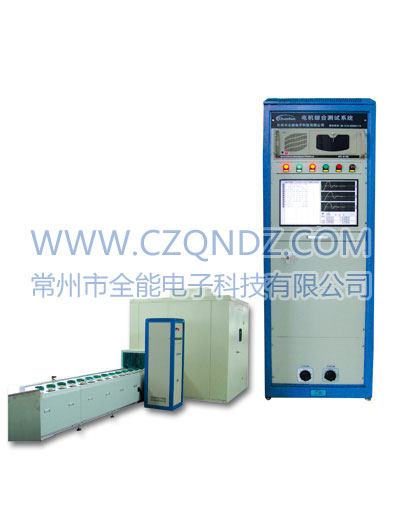

QML-2A motor auto testing line
This machine is applied to fast test steel casing motor such as pump, compressor, air condition motor and washing machine motor etc.. Its LCD shows all technical data which obtained by industrial control computer, which check and verify the quality of testing
No |
Testing item
测试项目 |
Testing voltage测试电压 |
Testing range测试范围 |
Testing precision测试精度 |
Testing way测试方式 |
Verify way判定方法 |
|
1 |
electrical strength电气强度 |
AC100～5000V |
0.5/1/2/5/10mA |
±0.5% |
Between coil and core线圈与铁芯之间 |
When testing value higher or lower than setting value is taken as reject, The software will give acousto-optic alarm accordingly当测试值高于或低于设定值时，判定为不良品，并由测试软件输出为声光报警。 |
|
2 |
Insulation resistance绝缘电阻 |
DC500V |
10～500MΩ |
±1.0% |
Between coil and core线圈与铁芯之间 |
|
3 |
DC resistance
直流电阻 |
1.8/18/180mA |
0.01～1.999Ω |
±0.5% |
Between winding and winding绕组与绕组之间 |
|
4 |
Between turns insulation
匝间绝缘 |
DC100～5000V |
0～100 |
±1.0% |
Test each winding respectively各绕组分别测试 |
|
5 |
No-load current
空载电流 |
220V/50HZ
110V/60HZ |
0～2A～10A |
±0.5% |
Test each gear respectively每档位分别测试 |
|
6 |
No-load power
空载功率 |
U*I*cosΦ |
±0.5% |
Test each gear respectively每档位分别测试 |
|
7 |
capacitance-voltage
电容电压 |
0～600V |
±0.5% |
Between main phase and subsidiary phase主相与副相之间 |
|
8 |
Locked current
堵转电流 |
0～2A～20A |
±1.0% |
motor start data电机启动之数据 |
|
9 |
PG test
PG测试 |
D, F, VOH,VOL占空比、频率、高电平、地电平 |
±1.0% |
PG outgoing line
PG引出线 |
|
|
10 |
Leakage current
泄露电流 |
0～250V |
0.1～50mA |
±0.5% |
Between housing and main, high gear外壳与主、高档之间 |
|
（Testing item has some differences when the type is different）
Main feature
This system adopts production line mode to boost pressure running, performance test and noise monitor when assembling motor.
With high testing efficiency (Test 600 sets per hour max)
saving labor（just need on line, test listening noise, off line to pack three persons）and suitable to batch testing.
This system is made up of assembly line, testing line, noise room and testing system.
Convey line adopts level travel up-and-down plate-type convey line structure, saving place and running steadily.
Convey line runs continuously in testing process, saving time and with high testing efficiency.
Noise room adopts metal plate casing and noise absorption material inner room.
The motor in and out through noise absorption channel, with beautiful, firm and good effect feature, it can totally meet the requirement of motor noise monitor.
Testing system adopts HyperTransport, integrate the testing part into testing electrical cabinet
With high precision, steady testing and convenient maintenance feature.
The conduction part on the station plate contact with line body between use copper bar, line and station plate contact conduction part adopt elastic contact copper conduction wheel.
Resistance test adopts four points method.
.All test items of electrical performance are done automatically at one time fast.
Each test items could be on or off randomly. Approval standard also could be set up randomly. The machine will give acousto-optic alarm for reject motor
Statistics quantity and qualified rate automatically, reject goods Statistics classify
Single station/double station can be chosen, with high utility and testing efficiency
Customer can do item programming automatically as per testing requirement.
Voltage adjusting can choose manual adjust or auto adjust.
System switch part use imported high voltage vacuum steel spring tube relay, withstand voltage 10000V,work test 100000000 times
It can save, edit, call kinds model stator and check data specification automatically.
.Machine can add bar code scan function as per customer requirement, input bar code when checking, the testing data will show on the screen. |
